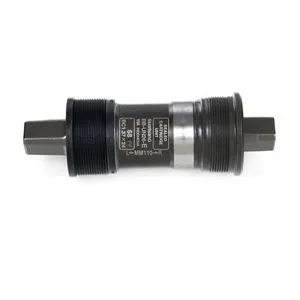

＋Shimano Tourney Cartridge E-Type Bottom Bracket BB-UN26-E MTB
The Shimano UN26 bottom bracket offers smooth rotation for square taper cranks. Bottom bracket features a plastic left hand cup. Sealed bearings and high quality spindle make it last for years and it's maintenance free.
- Smooth rotation
- Square type
- Octalink V1 bottom bracket
- Shell size = 68mm
- Spindle length = 109.5mm
- English Thread
| MODEL NO | BB-UN26-E |
|---|---|
| SERIES | SHIMANO |
| Remarks | * w/ Fixing bolts |
| Axle Length / Shell Width | MM110_68 mm (BC1.37), LL113_68 mm (BC1.37), LL113_73 mm (BC1.37), YL117_68 mm (BC1.37)* (chainline: 47.5), LL123_68 mm (BC1.37), LL123_73 mm (BC1.37) |
| Spindle Type | Square type |
|---|---|
| Structure | E-type |
